In our hyper-connected world, the internet is as essential as electricity. We stream, work, and connect from homes, offices, and coffee shops across the globe. But behind this seamless digital experience lies a complex ecosystem of specialized hardware known as network devices. From the humble router in your living room to the sophisticated switches in a data center, these devices are the unsung heroes of modern connectivity. For professionals in System Administration, DevOps, and for the growing population of Digital Nomads and Remote Work enthusiasts, a deep understanding of these components is no longer optional—it’s a critical skill for ensuring security, performance, and reliability.
This comprehensive guide will demystify the world of network devices. We will journey from the fundamental principles of the OSI model to the practical application of creating a secure, private network on the go. We’ll explore how devices like routers and switches operate, delve into the protocols that govern their communication, and provide practical code examples to illustrate how you can interact with and manage them. Whether you’re a Network Engineer designing a complex Network Architecture or a traveler looking to secure your connection, this article will provide you with the foundational knowledge and actionable insights you need.
The Fundamental Building Blocks of Computer Networking
To truly understand network devices, we must first grasp the conceptual framework they operate within: the OSI (Open Systems Interconnection) model. This model standardizes the functions of a telecommunication or computing system in terms of seven abstract layers. For our purposes, we’ll focus on the most relevant layers for physical devices.
Layer 2: The Data Link Layer and Switches
The Data Link Layer is responsible for node-to-node data transfer between two directly connected nodes. It deals with physical addressing using MAC (Media Access Control) addresses, which are unique hardware identifiers burned into every network interface card (NIC). The primary device at this layer is the Switch.
A switch operates on a local area network (LAN) and intelligently forwards data packets to their intended recipients. It maintains a MAC address table, which maps each device’s MAC address to the physical port it’s connected to. When a packet arrives, the switch looks at the destination MAC address and forwards the packet only to the corresponding port, unlike an old hub which would broadcast it to all ports. This process dramatically reduces network congestion and improves efficiency.
Layer 3: The Network Layer and Routers
The Network Layer is where the magic of inter-network communication happens. It’s responsible for packet forwarding across different networks, a process known as routing. This layer uses logical addressing, primarily through the Internet Protocol (IP), with familiar formats like IPv4 and the newer IPv6. The quintessential Layer 3 device is the Router.
A router connects multiple networks (like your home LAN to the internet) and uses routing tables to determine the best path for forwarding packets. It inspects the destination IP address of each packet and makes a decision on where to send it next on its journey across the internet. This is fundamental to how global data communication works. Network Addressing concepts like Subnetting and CIDR (Classless Inter-Domain Routing) are crucial for organizing and managing IP address space efficiently at this layer.
Basic Network Troubleshooting Commands
Understanding these layers helps in practical Network Troubleshooting. Simple command-line Network Tools can reveal a lot about your network’s structure and health. For example, ping uses the ICMP protocol to test reachability, while traceroute maps the entire Layer 3 path a packet takes to its destination.
#!/bin/bash
# A simple script to check network connectivity and path
TARGET_HOST="google.com"
echo "--- Pinging ${TARGET_HOST} to check reachability ---"
# -c 4 sends 4 packets
ping -c 4 ${TARGET_HOST}
if [ $? -eq 0 ]; then
echo -e "\n--- Host is reachable. Now tracing the route... ---"
# traceroute shows the hop-by-hop path to the destination
traceroute ${TARGET_HOST}
else
echo -e "\n--- Host ${TARGET_HOST} is not reachable. Check your connection. ---"
fiThe Modern Network in Action: The Secure Travel Setup

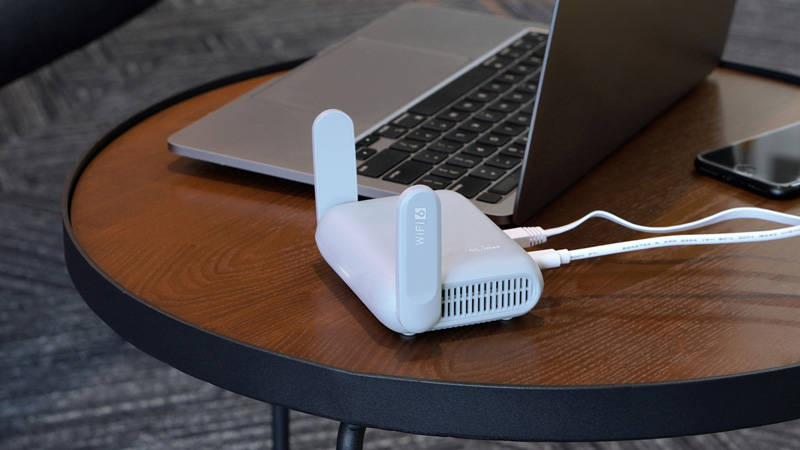

The concepts of routing and switching come together beautifully in modern, practical applications like a travel router. For Digital Nomads and anyone relying on public Wi-Fi, creating a secure personal network is a top priority. A travel router is a compact device that combines multiple network functions to create a private, encrypted bubble for all your devices.
How a Travel Router Works
A travel router typically operates in a “Wireless ISP” (WISP) or “Repeater” mode. Here’s a breakdown of the key functions it performs:
- Wi-Fi Repeating: The device connects to an existing Wi-Fi network (like at a hotel or café) as a client. It then creates its own, separate Wi-Fi network with a different name (SSID) and password.
- Network Address Translation (NAT): All your devices (laptop, phone, tablet) connect to the travel router’s new network. From the perspective of the public Wi-Fi, it only sees one device connected—the travel router itself. The router manages a private subnet for your devices, translating their private IP addresses to its single public-facing IP address. This provides a basic layer of isolation and security.
- VPN Client Integration: This is the game-changer for Network Security. The travel router itself can be configured to establish a persistent VPN (Virtual Private Network) connection to a service of your choice. All traffic from any device connected to the travel router is automatically routed through this encrypted VPN tunnel. This means you only need to configure the VPN once on the router, and every device you connect benefits from the encryption, shielding your activity from snooping on the public network.
Underlying Protocols: DNS and TCP/IP
When you use this setup, several core Network Protocols are at play. Your device first needs to resolve a domain name like “example.com” into an IP address using the DNS Protocol. This request goes to the travel router, which forwards it through the VPN tunnel to a secure DNS server. Once the IP is known, your device establishes a connection using the TCP/IP suite. The Transport Layer’s TCP protocol ensures reliable, ordered delivery of data for applications like web browsing, governed by the Application Layer’s HTTP Protocol or its secure counterpart, the HTTPS Protocol.
We can demonstrate a simple DNS lookup using Python’s socket library, which is a core component of Network Programming.
import socket
def resolve_hostname(hostname):
"""
Resolves a given hostname to its IPv4 address using the socket library.
This is a fundamental step before establishing a network connection.
"""
try:
ip_address = socket.gethostbyname(hostname)
print(f"Successfully resolved '{hostname}' to IP address: {ip_address}")
return ip_address
except socket.gaierror as e:
print(f"Error: Could not resolve hostname '{hostname}'.")
print(f"DNS lookup failed: {e}")
return None
# Example usage
target_domain = "www.holidaylandmark.com"
resolve_hostname(target_domain)
another_target = "nonexistentdomain12345.xyz"
resolve_hostname(another_target)Advanced Interaction: Network Automation and APIs
Traditionally, Network Administration involved manually connecting to devices via a command-line interface (CLI) to configure them. This approach is slow, error-prone, and doesn’t scale. The industry has since shifted towards Network Automation and Software-Defined Networking (SDN), where network devices are managed programmatically.
The Rise of Network APIs
Modern network devices, from enterprise-grade Firewalls to prosumer gear, now expose a REST API or other types of Network APIs (like GraphQL). These APIs allow administrators and developers to query device status, retrieve performance metrics, and push configuration changes using standard web protocols like HTTP. This is a cornerstone of DevOps Networking, enabling infrastructure-as-code practices for network management.
For example, you could write a script to automatically retrieve a list of all clients connected to your office router, check their signal strength, and log the data for Network Monitoring. This moves network management from a reactive to a proactive model.
Here’s a Python example using the popular requests library to interact with a hypothetical network device’s REST API.
import requests
import json
# --- Configuration for a hypothetical network device API ---
# In a real-world application, store these securely!
API_ENDPOINT = "https://192.168.1.1/api/v1"
API_KEY = "your_super_secret_api_key"
HEADERS = {
"Authorization": f"Bearer {API_KEY}",
"Content-Type": "application/json"
}
def get_connected_clients(api_url):
"""
Queries the network device's API to get a list of connected clients.
"""
try:
# We add verify=False for self-signed certs on local devices.
# In production, you should use proper certificate validation.
response = requests.get(f"{api_url}/clients", headers=HEADERS, timeout=10, verify=False)
# Raise an exception for bad status codes (4xx or 5xx)
response.raise_for_status()
clients = response.json()
print("--- Successfully fetched connected clients ---")
for client in clients:
print(f"- Hostname: {client.get('hostname', 'N/A')}, "
f"IP: {client.get('ip', 'N/A')}, "
f"MAC: {client.get('mac', 'N/A')}")
except requests.exceptions.RequestException as e:
print(f"An error occurred while communicating with the API: {e}")
# Run the function
get_connected_clients(API_ENDPOINT)Low-Level Packet Analysis
For deeper Network Troubleshooting and security analysis, we can operate at an even lower level through Packet Analysis. Tools like Wireshark provide a graphical interface to capture and inspect every single packet traversing your network interface. For programmatic analysis, libraries like Scapy in Python are incredibly powerful. You can craft custom packets, send them, and analyze the responses, which is invaluable for Protocol Implementation, security testing, and network discovery.
This Scapy script demonstrates how to sniff for DNS query packets on your local network.
#!/usr/bin/env python3
from scapy.all import sniff, DNS, DNSQR
def dns_packet_handler(packet):
"""
This function is called for each captured packet.
It checks if the packet is a DNS query and prints the details.
"""
# Check if the packet has a DNS layer and it's a query (qr=0)
if packet.haslayer(DNS) and packet[DNS].opcode == 0 and packet[DNS].ancount == 0:
query_name = packet[DNSQR].qname.decode('utf-8')
print(f"[+] DNS Query Detected: {packet[IP].src} -> {packet[IP].dst} for '{query_name}'")
def main():
print("--- Starting DNS query sniffer... Press CTRL+C to stop. ---")
# Sniff for UDP packets on port 53 (standard DNS)
# The 'prn' argument specifies the callback function to run on each packet.
try:
sniff(filter="udp port 53", prn=dns_packet_handler, store=0)
except PermissionError:
print("\n[!] Permission Error: You need to run this script with root privileges (e.g., sudo python your_script.py)")
except KeyboardInterrupt:
print("\n--- Sniffer stopped. ---")
if __name__ == "__main__":
main()Best Practices for Network Performance and Security
Whether you’re managing a corporate network or your personal travel setup, adhering to best practices is crucial for a stable and secure experience.
Optimizing for Performance
- Bandwidth vs. Latency: Understand the difference. Bandwidth is the amount of data you can transfer per second (the “width of the pipe”), while Latency is the delay for a packet to travel from source to destination (the “length of the pipe”). For activities like gaming and video calls, low latency is often more important than massive bandwidth.
- Wired vs. Wireless: For stationary devices, always prefer a wired Ethernet connection. It offers lower latency, higher speeds, and greater reliability than even the best Wireless Networking (WiFi). Use high-quality Network Cables (Cat6 or higher) for best results.
- Wi-Fi Optimization: Use tools to scan for Wi-Fi channels and choose the least congested one. Prioritize the 5GHz band for higher speeds and less interference, and use the 2.4GHz band for better range.
Enhancing Network Security
- Firewalls: A firewall is your first line of defense, inspecting incoming and outgoing traffic and blocking malicious connections. Ensure the firewall on your router and your operating system is enabled.
- Strong Encryption: Always use WPA3 (or at least WPA2-AES) for your Wi-Fi network password. Avoid outdated and insecure protocols like WEP or WPA.
- Regular Updates: Keep the firmware of your router and other network devices updated. Manufacturers regularly release patches for security vulnerabilities.
- VPN is a Must: When on any network you don’t fully control (public Wi-Fi, hotels, etc.), use a VPN. As demonstrated with the travel router, it encrypts your traffic, protecting you from eavesdropping and man-in-the-middle attacks.
Conclusion: Mastering Your Digital Lifeline
We’ve journeyed from the foundational OSI model to the sophisticated world of network automation, all through the lens of the devices that make it possible. We’ve seen that a router is not just a box that provides internet; it’s a complex Layer 3 device that makes critical decisions every millisecond. A switch isn’t just a port extender; it’s an intelligent Layer 2 manager that creates an efficient local network. Modern devices, like a travel router, elegantly combine these functions with security features like VPNs to meet the demands of today’s mobile and remote workforce.
For the tech-savvy professional, understanding these concepts unlocks the ability to design, troubleshoot, and secure networks effectively. By leveraging command-line tools for quick diagnostics, Python for automation, and tools like Wireshark for deep analysis, you can gain complete control over your network environment. As our world becomes increasingly reliant on robust and secure connectivity, mastering these network devices and protocols is an investment that will pay dividends in any technology-focused career or lifestyle.
